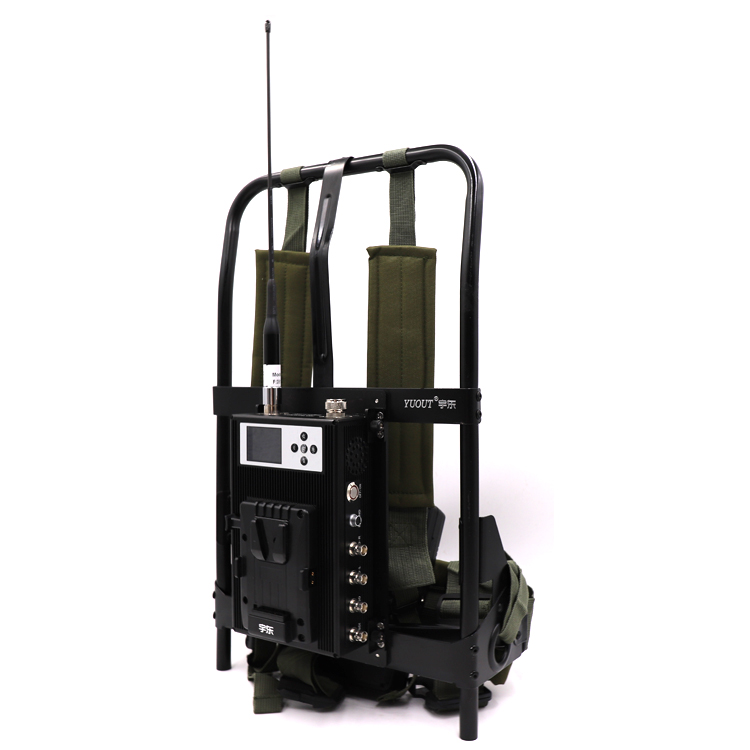

THOR 3 wireless image transmission adopts non-line-of-sight wireless technology independently developed by Yudong, 300MHz ~ 4400MHz frequency, can be customized wireless frequency band, support 3G/HD-SDI up to 1080p60 stable transmission line-of-sight distance of 2000 meters, up to 4000 meters (need to modify the antenna). Non-visual distance 500 ~ 2000 meters (depending on the actual application environment). (The environment is complex, can go through the wall, many people, many cars, many trees and many obstacles), mainly used in radio and television stations, film and television shooting, live education, large-scale concerts, film and television production, sports broadcast, social news, air live, studio, maritime, traffic police, civil air defense emergency, urban management law enforcement, three defense emergency. The system is pure hardware connection, plug and play.

THOR 3 Wireless image transmission adopts non-line-of-sight wireless technology independently developed by Yudong, 300MHz ~ 4400MHz frequency, can be customized wireless frequency band, support 3G/HD-SDI up to 1080p60 stable transmission line-of-sight distance of 2000 meters, up to 4000 meters (need to modify the antenna). Non-visual distance 500 ~ 2000 meters (depending on the actual application environment). (The environment is complex, can go through the wall, many people, many cars, many trees and many obstacles), mainly used in radio and television stations, film and television shooting, live education, large-scale concerts, film and television production, sports broadcast, social news, air live, studio, maritime, traffic police, civil air defense emergency, urban management law enforcement, three defense emergency. The system is pure hardware connection, plug and play.

Technical parameter
1. The distance of urban environment is 1 ~ 2KM, and the distance of open view is 2 ~ 5KM.

2. Working frequency: 300M ~ 398MHz; Field panel adjustment in the range of 400-900MHz, step by 2MHz, wave modulation scheme supports QPSK/16QAM.

3. Frequency bandwidth 2/2.5/4/8MHz can be set on the field panel RF output power 1-5W adjustable.

4. Field panel adjustment, step 1dB image format: at 2-8MHZ RF bandwidth, support high-definition 1080i/P(1920×1280) clarity transmission, at 2-8MHZ RF bandwidth, support D1(720×576) clarity.

5. YUOUT non-line-of-sight modulation technology, transmitter input with HDMI and CVS composite audio-visual interface, various interfaces can be freely switched on site.

6. Yudong exclusive encryption: AES-YUOUT, anti-leak technology, and can support your own change of pure digital password, security level is the same as bank card password, only you know, can not crack.

7. Support frequency switch, support one round multiple receive, support CVBS video input and output.

8. Support type B port: external power port, support DC 12-16V.

9. Support plate: front and back plate, DC power through.

10. The device has a liquid crystal display for displaying parameters and adjusting parameters.

11. Compatible with EDID structure 1.1, receiver HDMI signal output (HDMI SDI two options).

12. Receive the suction cup antenna or feeder, which can expand the high-power antenna customized by Yudong, effectively increase the product distance and performance.

13. Plug and play, no complicated setup.
